Petoi Nybble V2: World's Cutest Open-Source Bionic Robotic Cat
Now On Sale For $269.99 As Opposed To $299.99

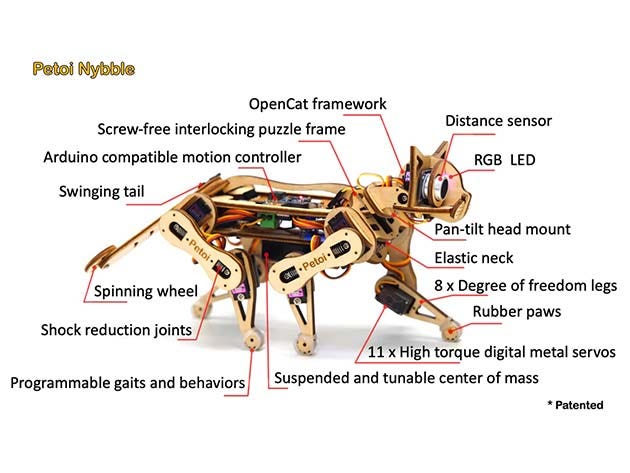

Meet Nybble, the palm-sized open-source bionic robot cat. Have fun watching it play tricks like a real animal, moving with 4 legs rather than wheels. Four-legged robot motion gives it more freedom to navigate unstructured terrains and express the joy of life whenever it moves. Evolving with an open-source gene, Nybble is an quadruped robot platform to fuse multiple makers' gadgets into one organic system. With a customized Arduino board coordinating all instinctive and sophisticated movements, you can plug in various sensors to bring in perception. You could also inject artificial intelligence capabilities by mounting a Raspberry Pi or other AI chips through wired/wireless connections. Have fun while improving your programming skills!
Successfully funded on Indiegogo with more than 4000 units sold worldwide!
Software Level
Real cat-like behaviors. Control with programmable behaviors & new tricks
STEM & robotics kit. Learn coding, customize, & program your own pet to make it come to life with amazing and cute tricks. Develop innovative & advanced four-legged walking robot gaits, locomotion, and kinematics behaviors for applications and research
Highly programmable. Arduino C++, Python coding that allows exporting and importing new skills
Wireless control. Use the Petoi mobile/desktop apps to configure and remote control via Bluetooth connection
Highly extensible. Works with Raspberry Pi & Arduino ecosystem
Built on OpenCat. Open-source project for a quadruped robot
Hardware Level
Legged motion. More freedom to navigate unstructured terrains
Specially tuned consumer-level servos as the joints. Simplify the control system & reduce the cost
Spring-loaded joints. Reduce shock on the gears of the servos
5-component system. Body frame, actuator, electronics, battery & software
Sweet point of power/weight factor. Achieve impressive agility (max speed at 5 body lengths/second)
Nybble V2: What's New?
Rechargeable 7.4V 1,000mAh Li-Ion battery. Provides 70 minutes of playing time
New remote. With graphical button design for more intuitive control
3D printed upper leg pieces
New servos. The new servos are differentiated by their cable length. Shorter cables are used for the neck, tail, and four shoulder joints. Longer cables are used for head tilting and the four knee joints
Unified Screws Screw B and D are both replaced by C (flat tip)
Overall improved software integration and UI
Nybble is suitable for adults and children over the age of 14 to learn STEM related topics. Kids can enjoy playing with Nybble under the supervision of an adult.
On average, it takes four hours to assemble Nybble's frame. No soldering is required for the basic functionalities of Nybble. There are several moments when you need to be extremely careful to plug in the cords in the right order and direction.
Experience with coding is required. You will need to use Arduino IDE or Petoi Desktop app to upload firmware and configure Nybble.
Specs
Color: natural wood brown
Dimensions: 10" x 4.2" x 5.5"
Weight: 11.2oz
Programmable robot built on OpenCat software
Arduino
Raspberry Pi (not included)
3D wooden puzzle frames that can be assembled in 100 minutes.
RGB LED
High-speed and agile motion
30+ built-in skills and programmable motions
Palm-sized and lightweight
Warranty
Includes
Plywood body parts
11x DS031 servos
1x NyBoard V1
1x USB programmer
1x Bluetooth dongle
1x WiFi dongle
1x Infrared remote
1x 7.4V 1,000mAh Li-ion battery
1x MicroUSB Cable
